Aurotek | PCB Depaneling Machine | Y-S168B5-SL

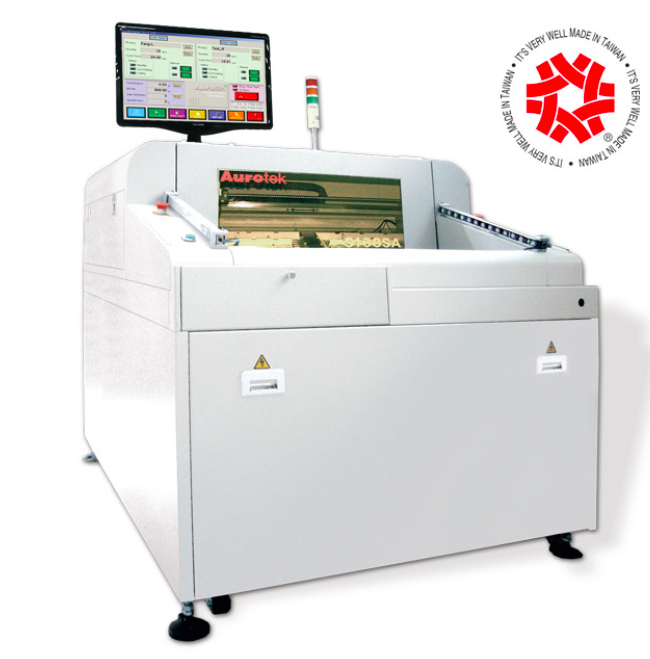

The S168B5-SL is an off-line depaneling machine. It automatically performs depaneling after the operator loads the PCB. The S168B5-SL also incorporates a cutting tool driven by a high-speed spindle to minimize the mechanical stress of the workpiece to be cut. Therefore, we will have high accuracy and speed. The ducts on the cutting side help the removal of the dust generated during cutting to the vacuum cleaner. This results in a clean and dust-free environment. The machine is easy to use. A supplementary CCD camera and a graphic interface allows the user to quickly and precisely define the parts to be cut. Specifications

• Frame placement: 1 station
• Working area: X 500mm, Y 450mm, Z 60mm
• Component height:
• Top 15mm Bottom 45mm
• Plate thickness: 0.5 – 2mm (It is necessary to contact Aurotek for thicknesses greater than 2mm)
• Cutting accuracy: +- 0.1mm
• Positioning accuracy: +- 0.01mm
• Repeatability in positioning: +-0.02mm
• Number of axes in use: 3 (X, Y, Z)
• Movement speed (Max): X, Y: 1000mm/sec, Z: 750 mm/sec
• Cutting speed (Max): (It is according to specifications of the tool used)
• Cutting spindle: 5.000 – 60.
• Cuttingpossibilities: In line, arc, circular, U-curve, L-curve
• Axis motors: 3 axes, (AC servo controlled)
• Routing program: Coordinate input or manual guidance by 10x CCD camera
• Area safety sensor: Standard
• Operating system: Windows XP
• Program storage: HDD
• Program backup: USB
• Man-machine interface: TFT monitor + keyboard + mouse
• Card loading: Manual
• Electric current: 3 phases AC 220V+-5% 50/60 Hz
• Air: Dry 0.5Mpa
• Dimensions: 971 x 1172 x 1994mm
• Weight: 450 Kg
• Working Height: 90cm +-5cm
