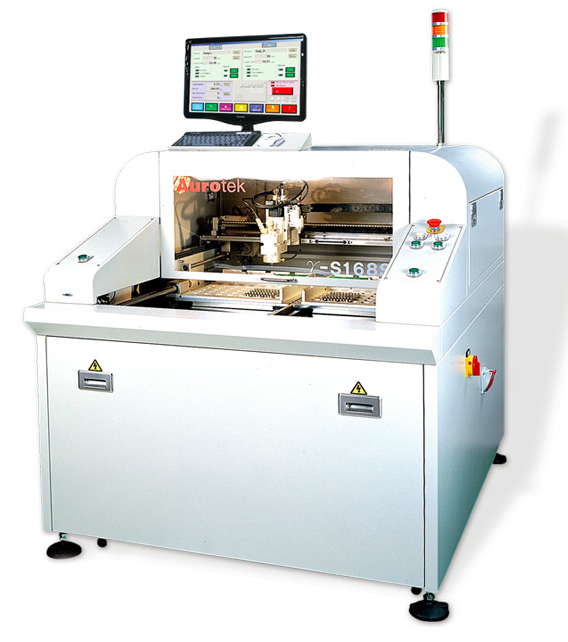

Aurotek | Double Sided PCB Depaneling Machine | Y-S168SA

Reference: AU-S168SA

Information

  • Two-mode load exchanger

This exchanger provides a simultaneous loading/unloading gapt o reduce waiting times, thus achieving a higher production per shift

  • Routing duplication

The user only has to enter two reference points to duplicate an existing program.

  • Cutting tool sectioning

The user will specify a certain distance at which the cutting tool cutting area should be changed to make the best use of the cutting tool.

  • Friendly OS

A 10x zoom image is displayed on screen for point location.

Specifications:

  • Frame placement: 2 stations
  • Work area: X 430mm, Y 510mm, Z 60mm
  • Component height:
  • Top 15mm, Bottom 45mm
  • Plate thickness: 0.5 – 2mm (It is necessary to contact Aurotek for thicknesses greater than 2mm)
  • Cutting accuracy: +- 0.1mm
  • Positioning accuracy: +- 0.02mm
  • Positioning repeatability: +-0.02mm
  • Number of axes in use: 3 (X, Y, Z)
  • Motion speed (Max): X, Y: 750mm/sec, Z: 325mm/sec
  • Cutting speed (Max): X, Y, Z: 100mm/sec (It is according to specifications of the tool used)
  • Cutting spindle: High speed motor with frequency converter, 150 W (Max 58.
  • Cutting possibilities: In-line, arc, circular, U-curve, L-curve
  • Axis motors: 3 axes, (200W AC servo controlled)
  • Tool sectioning: Max 2 sections
  • Routing program: Coordinate input or manual guidance by 10x CCD camera
  • Area safety sensor: Standard
  • Tool breakage detection:
  • Standard
  • Operating system: Windows XP
  • Program storage: HDD
  • Program backup: USB
  • Man-machine interface: TFT monitor + keyboard + mouse
  • Card loading: Manual
  • Electric current: 3 phases AC 220V+-5% 50/60 Hz [Vacuum included 3Hp] 3Kw, 11ª
  • Air: Dry 0.5Mpa
  • Dimensions: 1341 x 1682 x 1343 + 587 mm (light tower)
  • Weight: 670 Kg
  • Working height: 90cm +-5cm-.
