Details

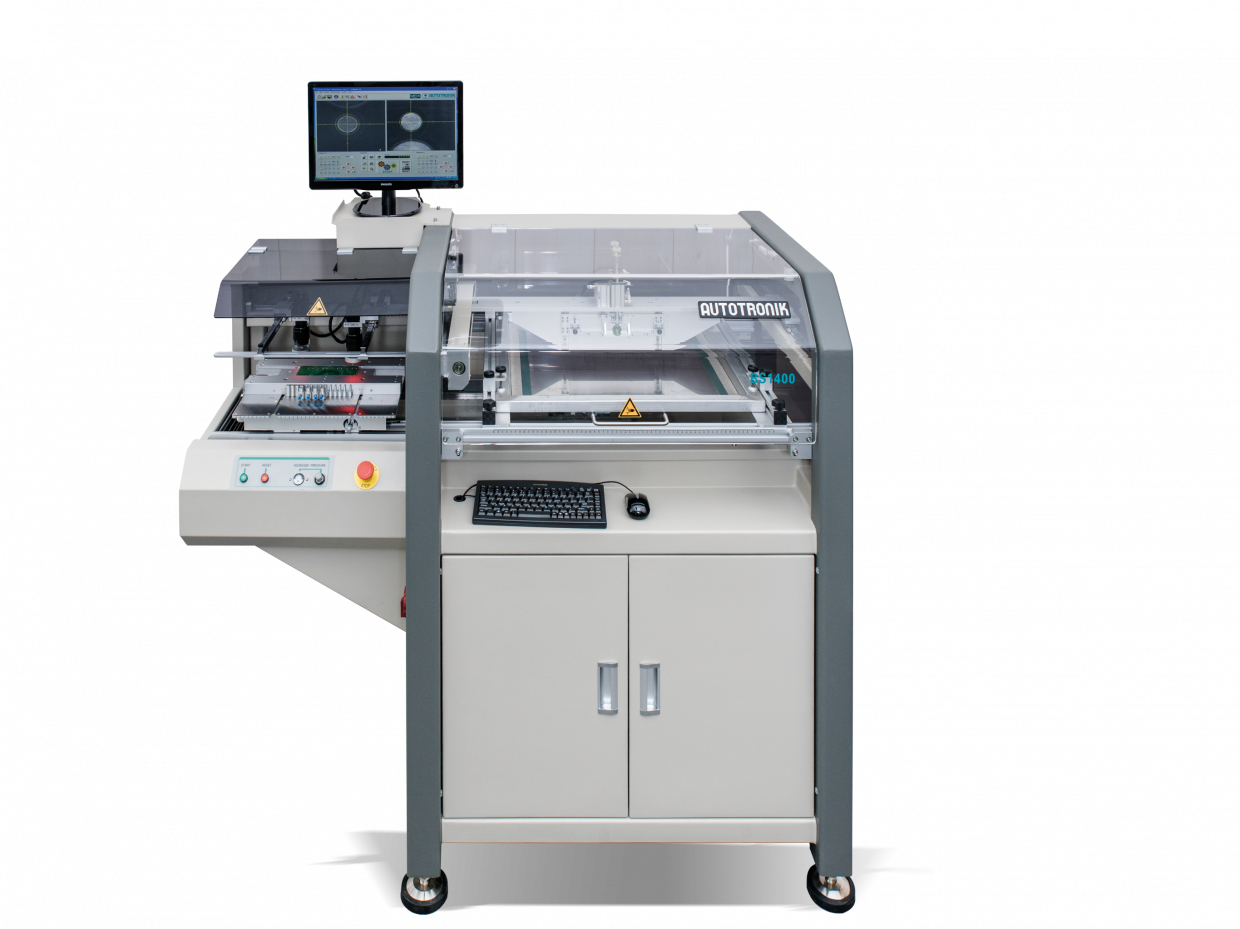

The accurate, reliable and easy-to-use Autotronik BS1400 screen printer is ideal for series production for small to medium quantities.
High repeat accuracy
To ensure fast print alignment and high repeatability, the BS1400 is equipped with a camera system that adjusts the plate position before each printing process. The highly functional design allows “fine-pitch” plates to be printed with a repeat accuracy of +/- 0.01 mm.
Large printing area
Large print area allows printing up to a size of 500 mm x 400 mm.
Suitable for double-sided PCB
The circuit board is supported by a universal frame holder, which requires no additional tools to print double-sided circuit boards
.
Supported frame types
n Supports use of most common frame systems from 470 x 300 mm to 736 x 736 mm
BS1400
*We reserve the right to make changes without notice |
